RealSense D435i input*
RGB and depth streams define the base observation layer for bottle and cup sorting in real time.
* External reference image. Source: Marc Auledas, CC BY-SA 4.0.
System architecture
From perception to robotic execution.
The system links YOLO11 perception, RGB-D localization, coordinate transformation, and robot control into one sorting pipeline.
Improved YOLO11 detection*
Model inference produces bottle and cup labels plus 2D boxes before the system estimates physical target position.
* External reference image. Source: Hughesperreault, CC BY-SA 4.0.
Coordinate transformation*
Depth-aware visual data is translated into robot coordinates so the manipulator can act on detections physically.
* External reference image. Source: Ibai Gorordo, CC BY-SA 4.0.

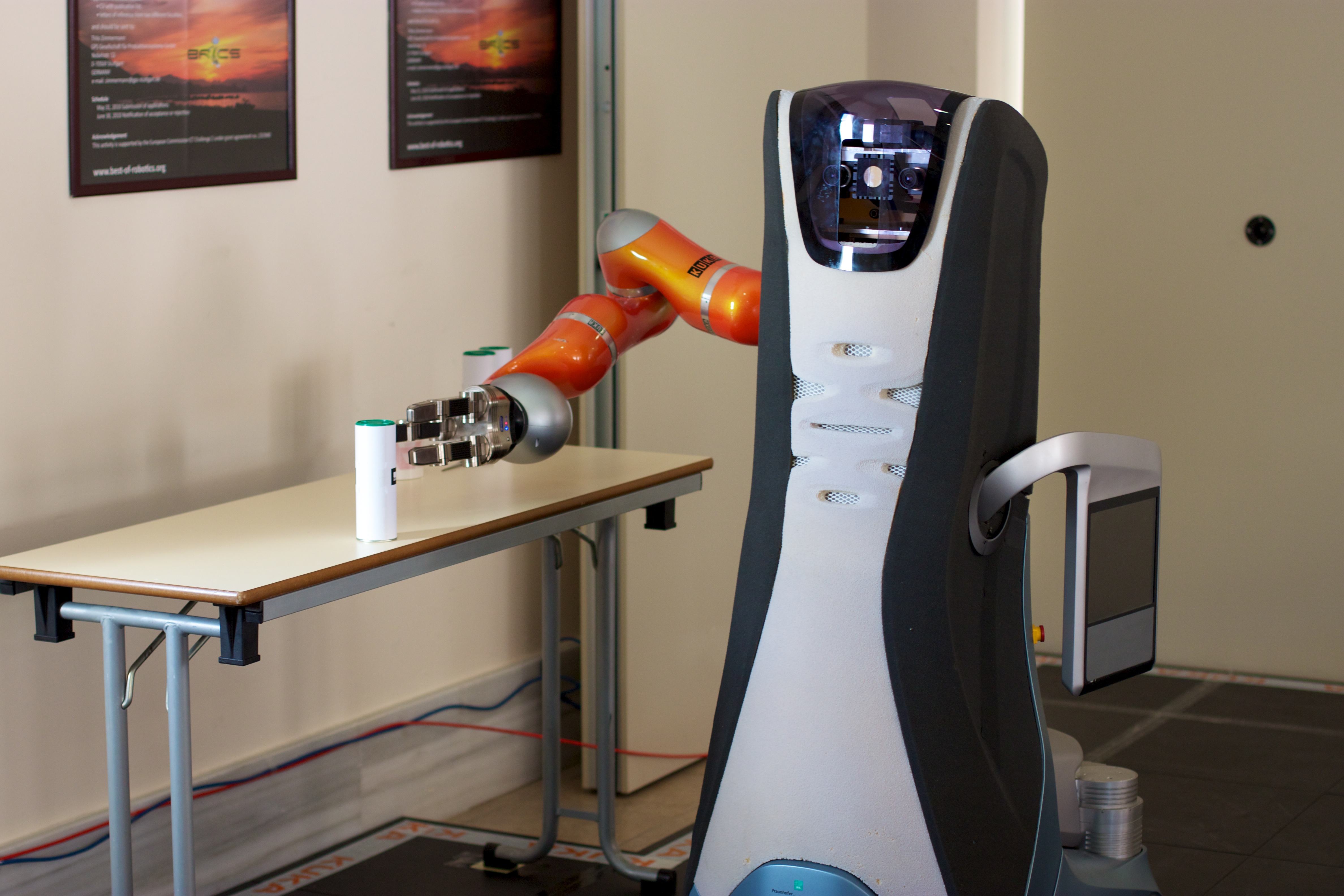

Seek-and-follow + grasp execution*
The arm aligns above the target, adapts to height changes, and then executes categorized grasp-and-place behavior.
* External reference image. Source: Paul Beaudry, CC BY-SA 2.0.
System visuals
Calibration and perception evidence.
These visuals show the calibration setup and live perception outputs used during robot operation.

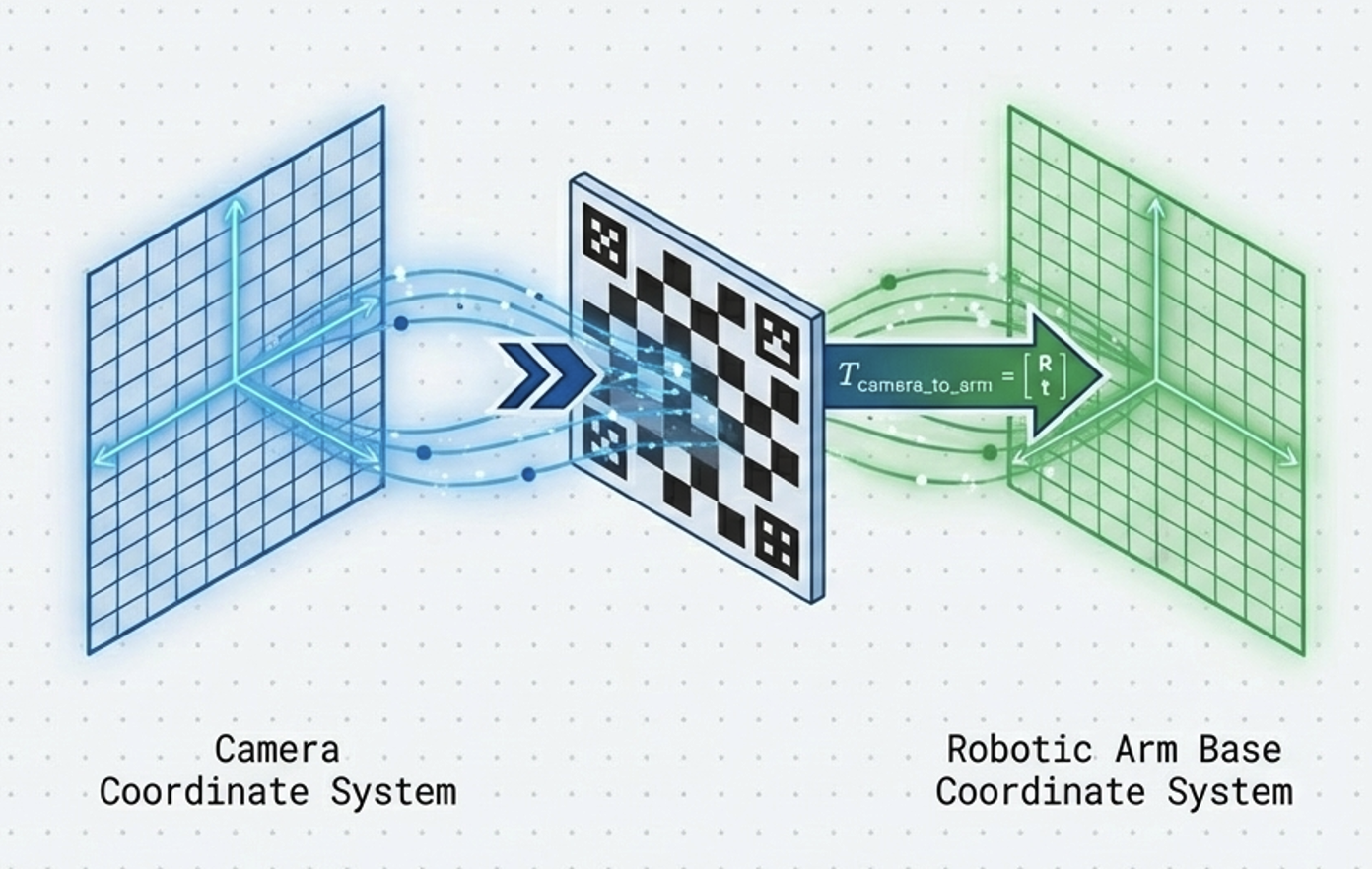

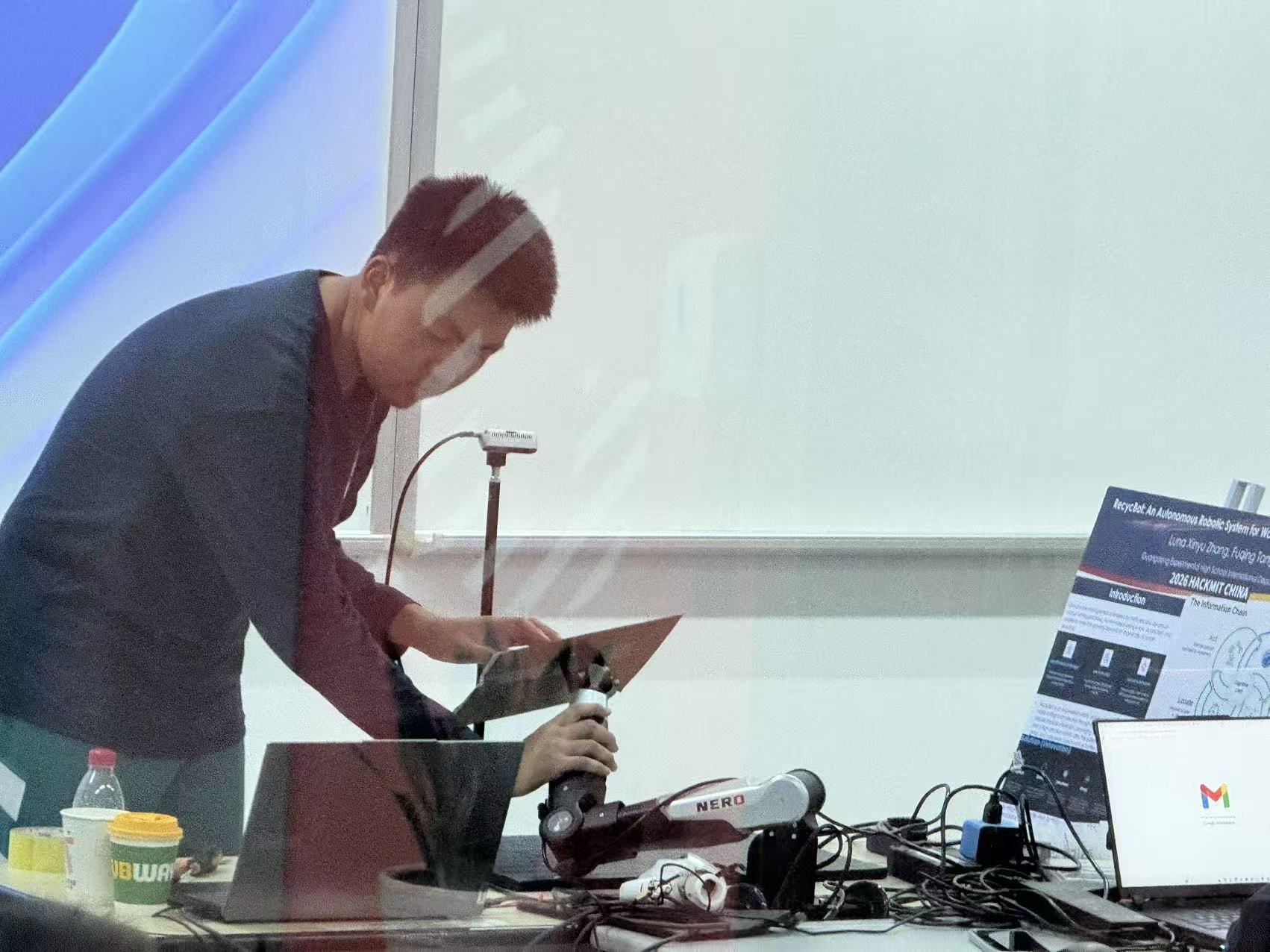

Using the calibration board
This calibration procedure establishes the relationship between camera observations and robot coordinates.

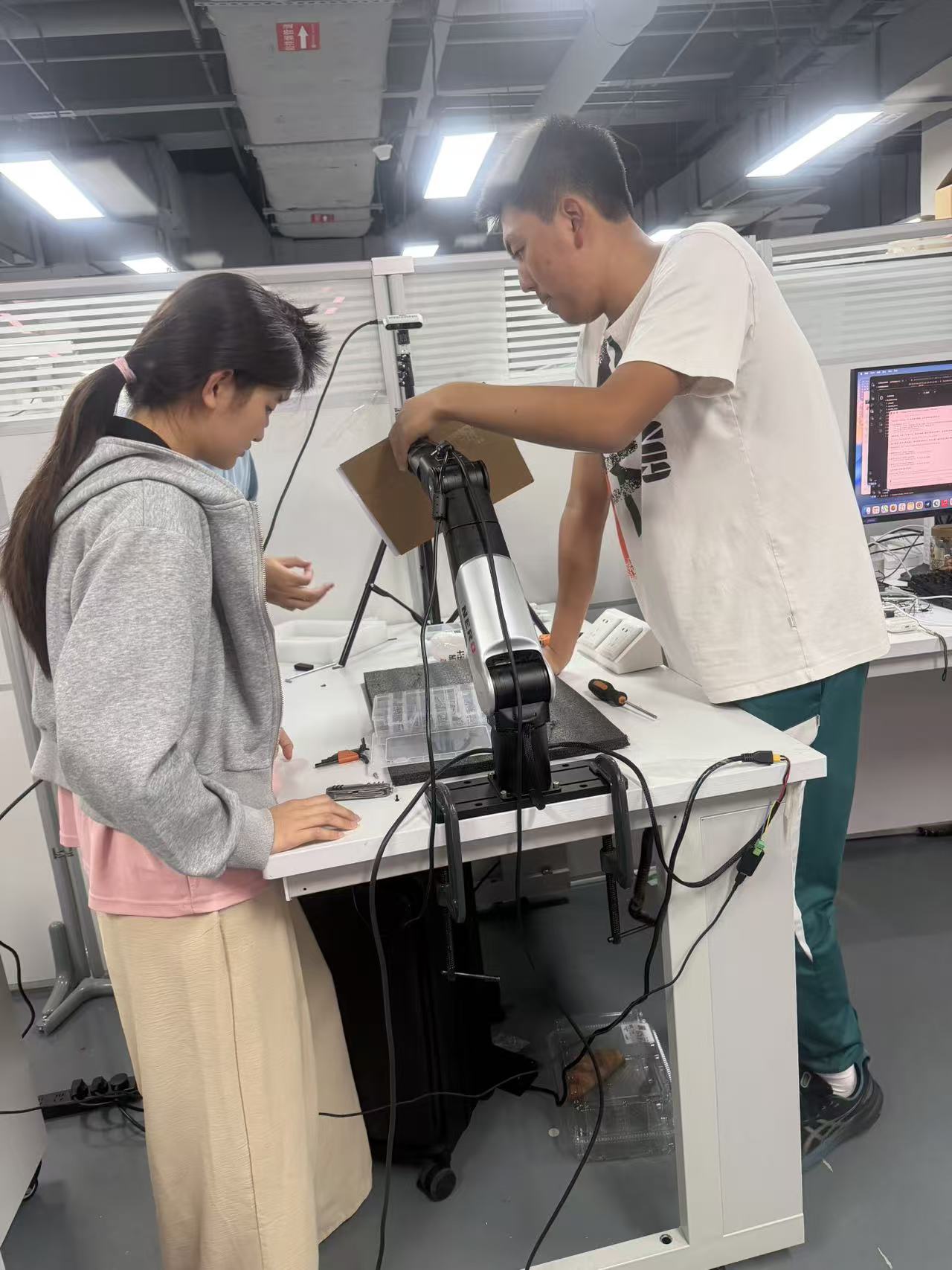

Calibration board installation
This setup image documents the physical preparation needed before coordinate transformation and end-to-end motion could be trusted.

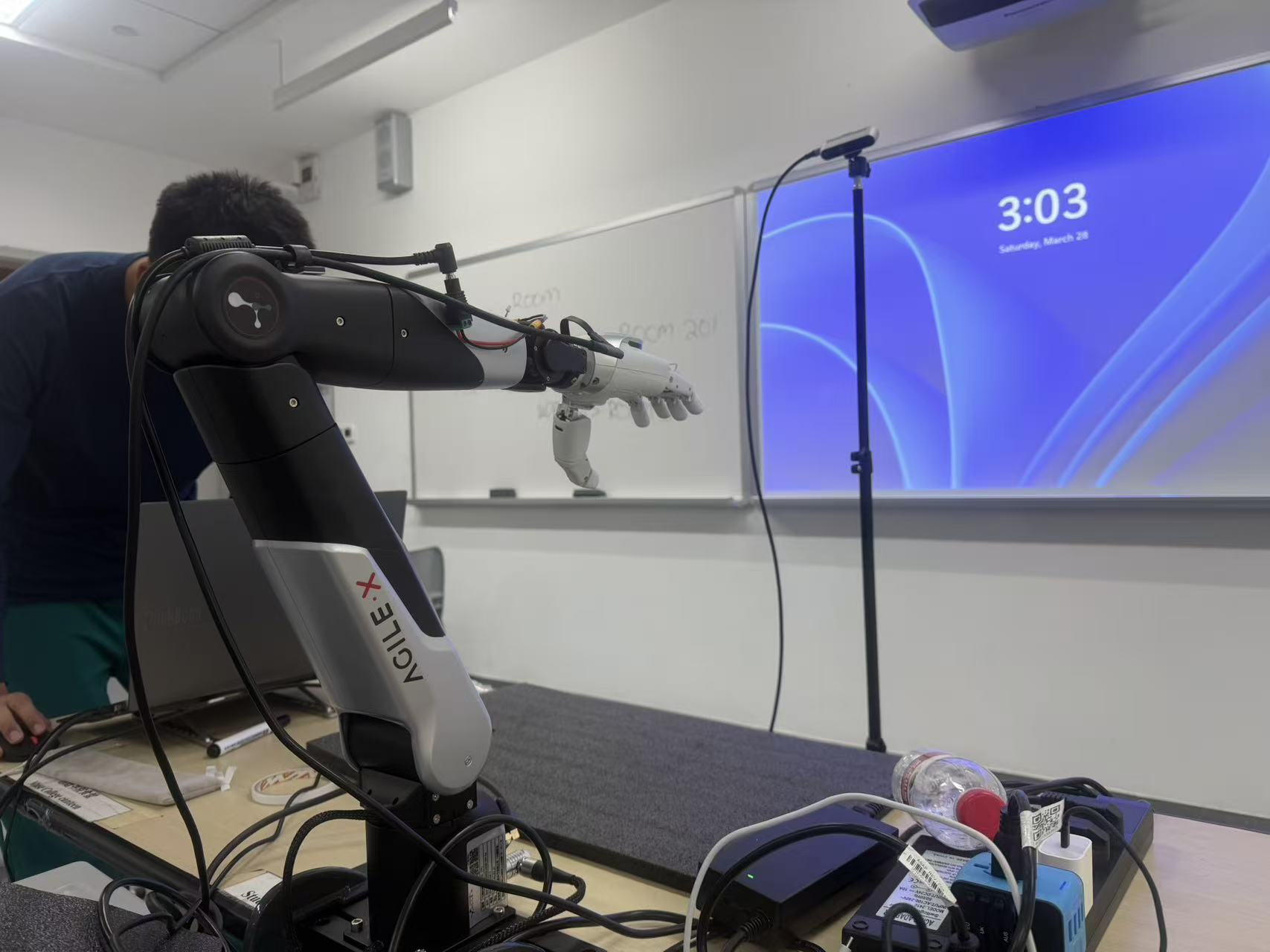

Seek-and-follow arm motion
This clip isolates the alignment stage, showing how the arm maintains a controlled relationship to the target before grasp execution.
Live detection and localization
This detection clip shows the perception output directly, including object labels and the targeting information used by the rest of the pipeline.
Data flow
The core technical chain.
RGB-D stream
Sensor frames arrive from the D435i and establish the live scene.
YOLO11 detection
Bottle and cup targets are classified with live bounding boxes.
Depth query
Depth is sampled around the target to estimate camera-space XYZ.
Coordinate transform
Visual coordinates are converted into actionable robot-space targets.
Seek and follow
The arm tracks the object and maintains a proper approach distance.
Grasp and place
The dexterous hand grips with tuned force and releases into the correct bin.
Operator visibility and runtime feedback
The web layer helps operators and judges understand what the robot is seeing, tracking, and doing during the run.
Subsystem validation before full runs
Each subsystem was validated separately before end-to-end runs, including detection, localization, calibration, and manipulator motion.
Prototype first, deployment later
Current results focus on prototype validation, while broader deployment, additional categories, and longer autonomous runs remain future work.
